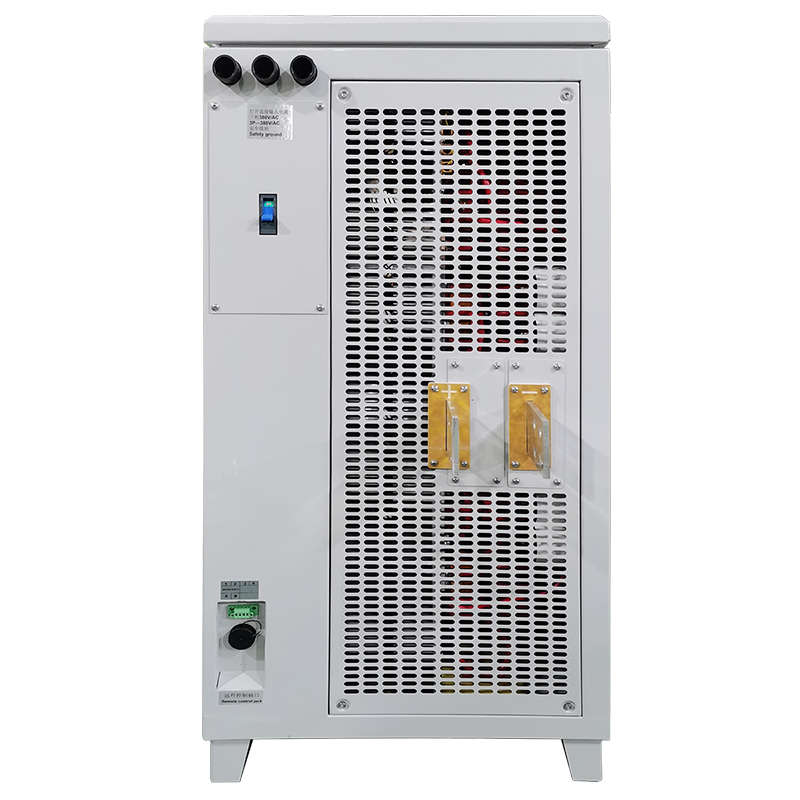

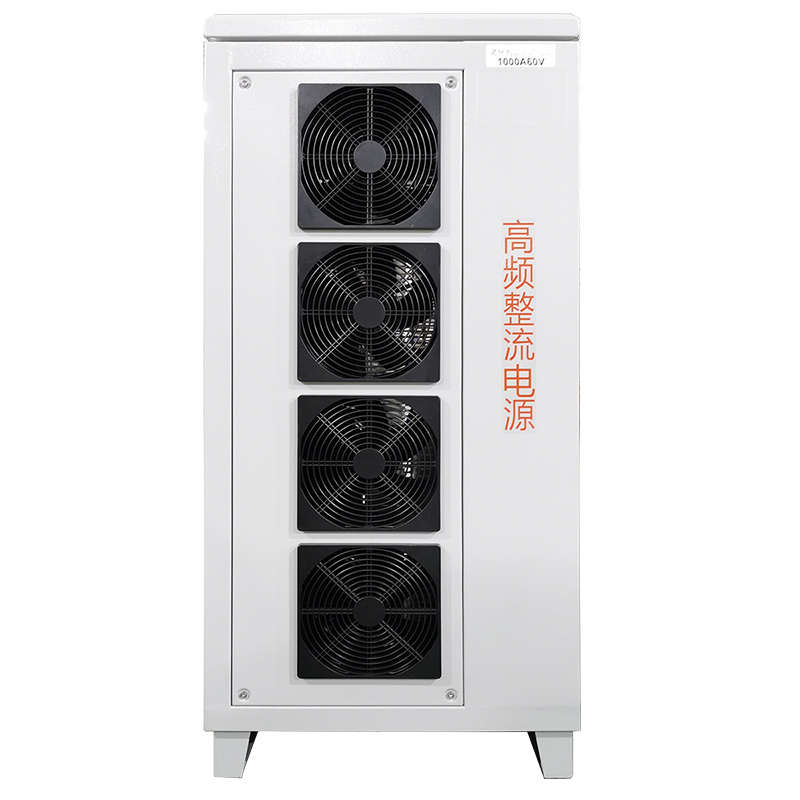

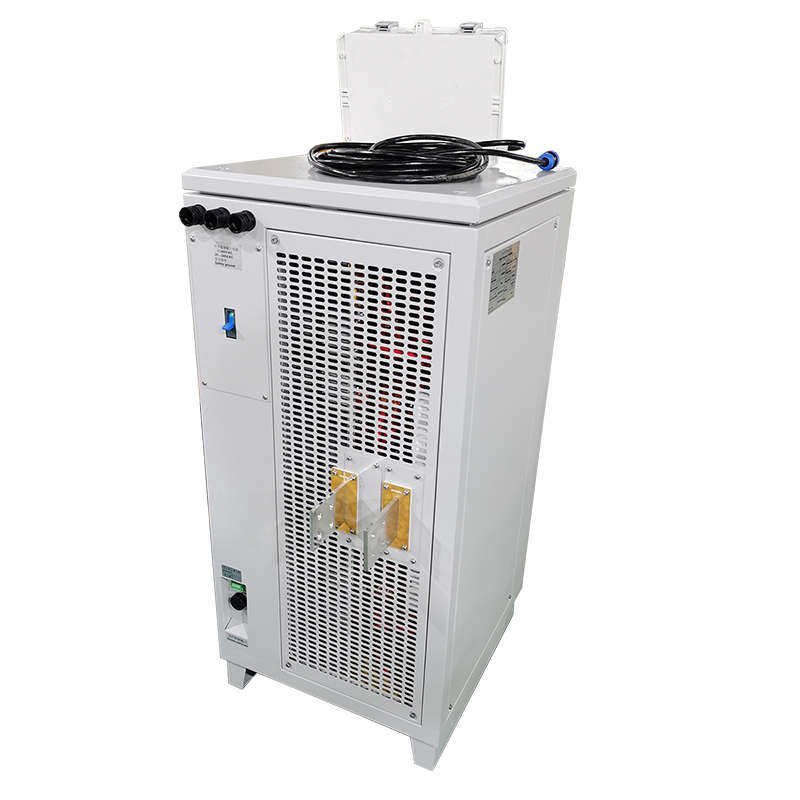

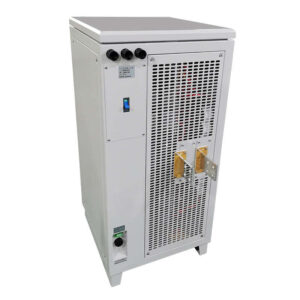

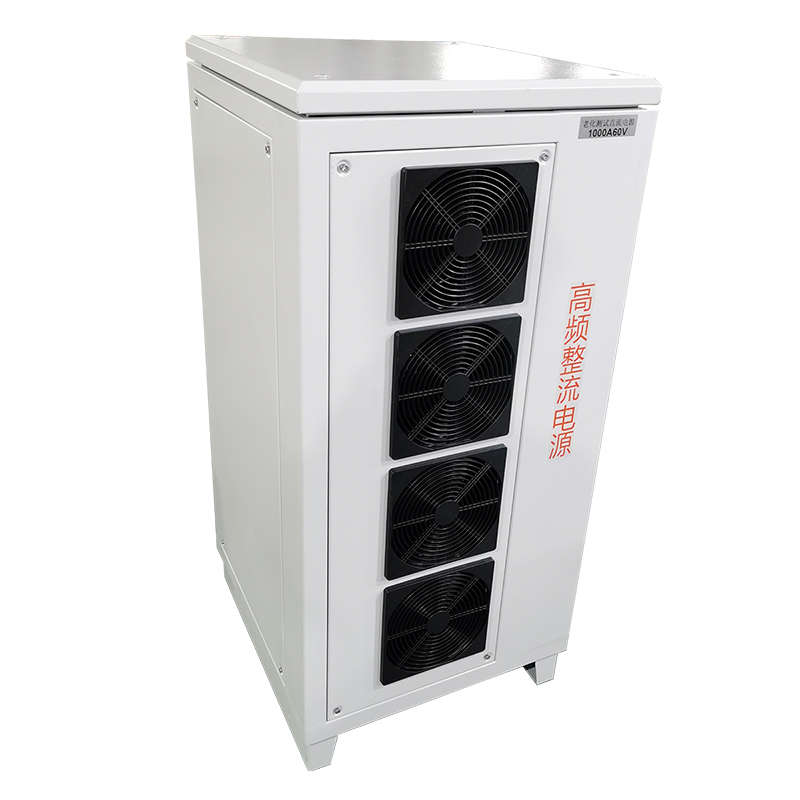

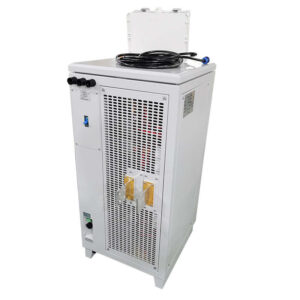

The 60V 1000A High-Current Industrial Rectifier is a unidirectional DC power supply rated at 60 V and 1000 A for high-current industrial DC supply projects. The published rating defines the available DC envelope; it does not replace process calculations or establish the normal operating setpoint.
Published Rating and Electrical Boundary
| Rated DC output | 60 V DC, 1000 A DC |
|---|---|
| Application | high-current industrial DC supply |
| Regulation | Constant-current or constant-voltage main mode, selected for the confirmed process |
| AC input | AC 380 V or 415 V. Final phase, frequency and site conditions must be confirmed. |
This product follows Gao Hui’s low-voltage AC input, high-frequency switching and isolation, one-way DC architecture. It is not presented as an external DC-input converter, AC-output source, bidirectional or regenerative supply, or medium/high-voltage direct-input system.
Application and Selection
This page applies to a two-terminal industrial DC load after its electrical and dynamic behavior has been defined Confirm whether the load is electrochemical, resistive, arc-related or another type, then determine continuous current, peak current and duty. Use the load curve, maximum operating voltage and connection losses; the generic term high current is not an application.
A high-current rating does not prove suitability for every industrial process or any bidirectional/regenerative load.
Working-point focus: the nameplate rating is an available ceiling, not a recommended operating recipe. The normal working current and voltage must come from the validated process window and actual load.
Information Required for Selection
- load type and equivalent behavior
- continuous and peak current
- working and maximum voltage
- duty cycle
- open/short-circuit behavior
- connection and cable losses
- control mode and sequence
- ambient, cooling and protection requirements
Also provide the site AC voltage, phase and frequency; cable distance; daily duty; ambient conditions; cabinet location; required local or remote control; and any interface or interlock list. Gao Hui engineering can then check the practical working range against the published rating.
Configuration Boundary
The confirmed standard scope is limited to the published DC rating and stated process use. Cooling method, enclosure, control interface, ramp, timer, ampere-hour control, pulse waveform, polarity reversal, communications, ripple target and redundancy are project-specific. They are supplied only when written into the confirmed configuration and must not be inferred from a legacy title, image or category.
Frequently Asked Questions
Is the rated current the normal process current?
No. The rating is the product ceiling; the working setpoint must follow the validated process window and actual load.
Can the process name determine the final voltage?
No. Loaded voltage depends on chemistry or load behavior, spacing, contacts, conductors and the production arrangement.
Are pulse, reversal and communications included?
Only when they are written into the confirmed configuration. They are not assumed from the product title.
Review related options in High-Current Industrial Rectifiers, or contact Gao Hui with the selection data above.
