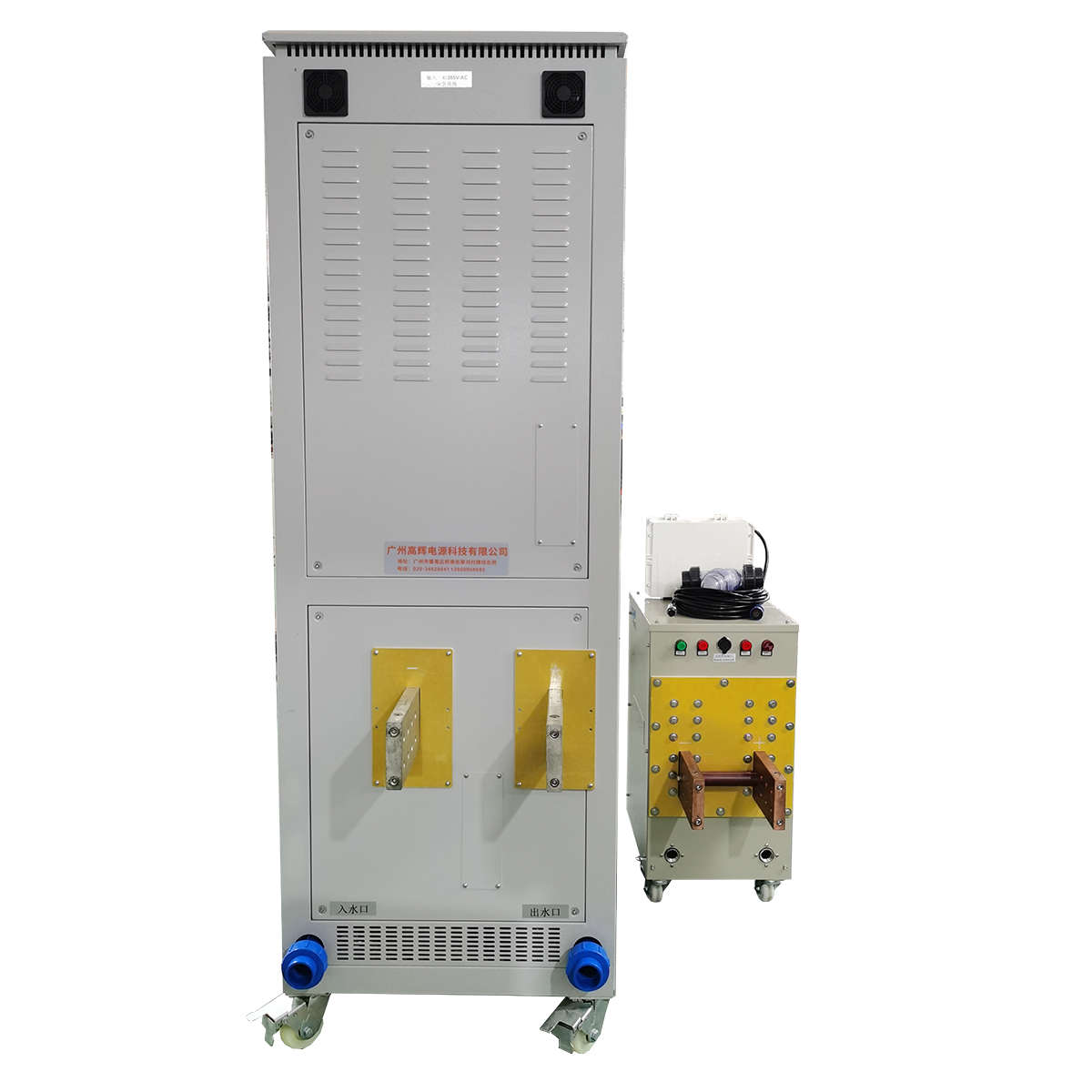

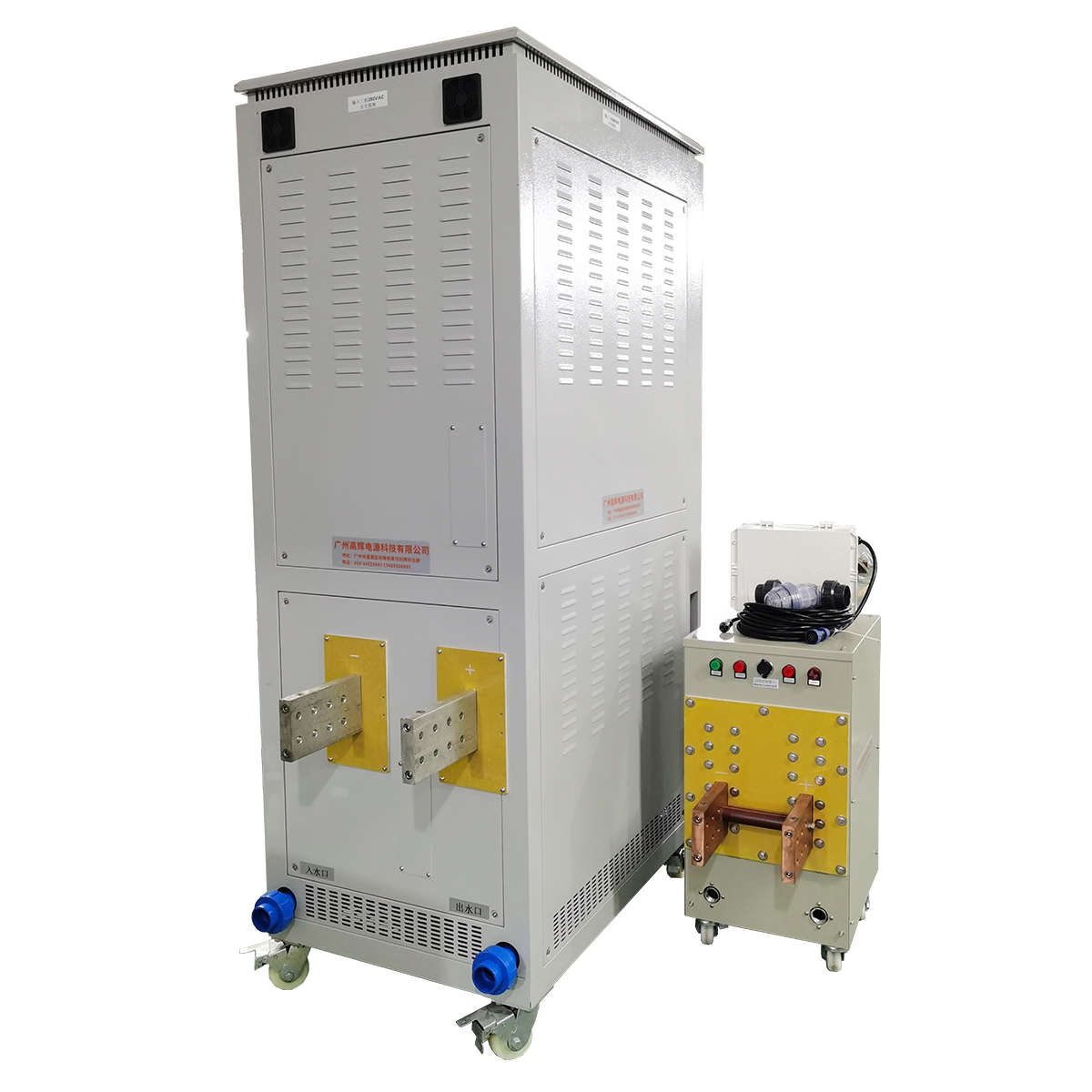

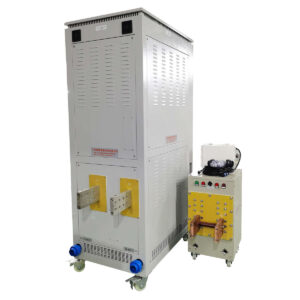

20000A 18V water-cooled hard chrome rectifier with automatic commutation (N+1 parallel operation)

Product Features

1. This product is a special power supply based on a standard high-frequency rectified electroplating power supply, with an output voltage of 6-18V. It possesses the functions of a standard electroplating power supply and is ideal for special electroplating surface treatments such as hard chrome plating. 2. It features multi-step stepped power supply, multi-step soft-start time setting, automatic reset, and other functions to meet different process requirements. 3. The power supply has voltage and current stabilization or current and voltage stabilization functions, with control and display accuracy ≤1%. 4. The equipment has multiple protection functions including output overcurrent, over-temperature, and input phase loss. The product is stable and reliable, with a reasonable internal structure and all electronic components sealed, reducing the impact of the external environment on the internal components. 5. The control system can be selected from digital control, analog control, or RS485 communication control, and can also be equipped with a 4-20mA, 0-10V standard control signal interface.

Introduction to Automatic Reversing Switches

Gaohui automatic reversing switches are DC power supply positive and negative terminal switching devices, widely used in switching power supply commutators in the electrolysis and electroplating industries. Current high-power switching power supplies lack positive and negative terminal reversing functionality; if reversing is required, manual switching of the positive and negative wires is necessary after stopping the machine, which is cumbersome. To overcome the shortcomings of existing technology, Gaohui provides a simple, fast, and highly safe pneumatic automatic reversing switch for switching power supplies.

Product Parameters

InputOutput	Voltage	Single-phase 220V/Three-phase 380V±10%, other options available upon request
InputOutput	Frequency	50Hz/60Hz, other options available upon request
Frequency ModeInputOutputFrequency ModeInputOutput	Current	0-Maximum value (A) adjustable (customizable up to 100,000A)
	Voltage	0-Maximum value (V) adjustable (customizable up to 10,000V)
	Power	Output rated voltage x rated current = Power
	Waveform	Square wave (standard), positive pulse, positive/negative pulse, smooth wave
	Voltage Regulation Accuracy	≤±0.1% (measurement range 10-100%)
	Current Regulation Accuracy	≤±0.1% (measurement range 10-100%)
Frequency Mode	Frequency	Low, medium, and high frequency modes, 100-9900Hz (customer selectable within this range)
Frequency Mode	Duty Cycle	10-100% (customer selectable within this range)
Operating Mode		Switchable current or voltage regulation function
Ripple Coefficient		<1%
Overall Efficiency		≥92% (rated operating conditions)
Cooling Method		Water-cooled
Timing Function		Cumulative ampere-hour, ampere-hour, and time control
Operating Status		Capable of long-term full-load operation
Protection Functions		Overcurrent, overheat, undervoltage, and overvoltage protection
Optional Functions		RS485 communication/analog input 4-20mA/remote start/stop interface, etc.
Control Program Customization		Examples include multi-stage process settings, multi-stage time control, and automatic polarity reversal.

Product Features

1. Low voltage drop, input/output voltage difference under full load is 150mV 2. Internal and external copper busbars remain at room temperature and do not overheat during full load operation 3. Long service life due to mechanical structure, up to ten years 4. Simple and durable cylinder-driven structure
