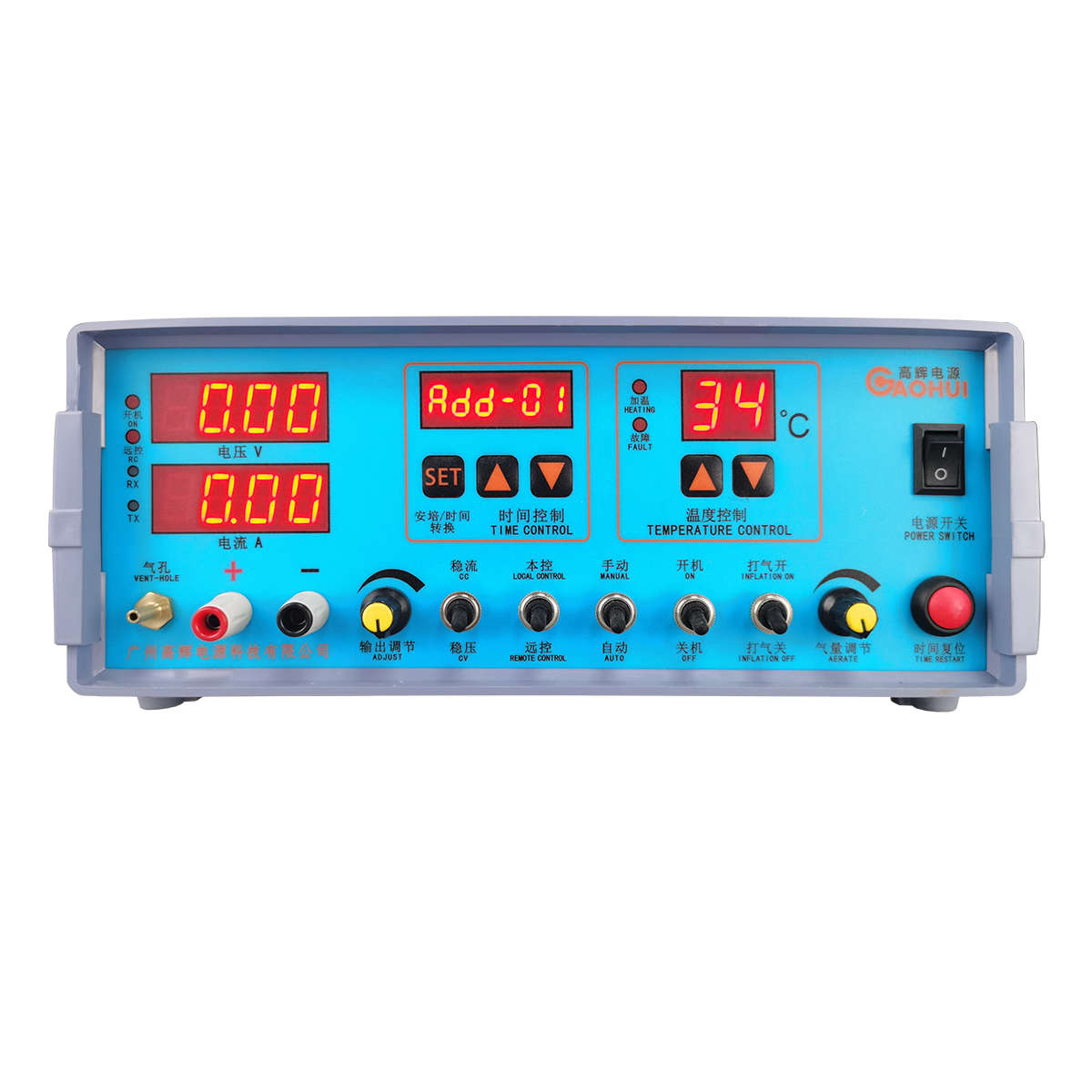

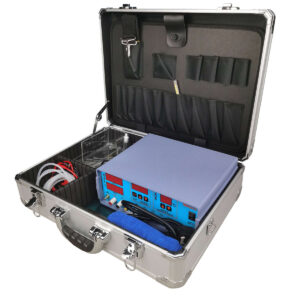

10A 18V fully automatic electroplating experimental equipment

Product Introduction

This electroplating experimental apparatus is designed for both research and quality control purposes. It not only analyzes interactions within plating solutions but also diagnoses solution failures. Additionally, it measures key plating-layer properties such as dispersion, leveling, and internal stress, providing comprehensive insights into the electroplating process. A standout feature is the Hastelloy tank, renowned for its reliability and simplicity of use. Its unique angled design, with the anode and cathode set non-parallel on a trapezoidal slope, allows for clear process observation. Furthermore, the apparatus includes integrated heating and bottom-air stirring systems that ensure stable, controllable conditions. This allows for rapid optimization of parameters like current density, temperature, and pH, ultimately achieving high-quality plating layers.

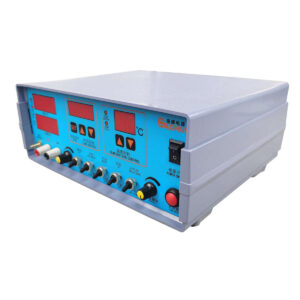

Product Parameters

Product Model: 10A18V
Input Voltage: Single-phase 220V/1P
Input Frequency: 50Hz/60Hz (customizable)
Output Current: 0-20A adjustable
Output Voltage: 0-18V adjustable
Output Power: 360W
Output Voltage Regulation Accuracy: ≤±0.1% (Metering range 10-100%)
Output Current Regulation Accuracy: ≤±0.1% (Metering range 10-100%)
Rated Current: 3A
Operating Mode: Switchable between current regulation and voltage regulation
Cooling Method: Air-cooled
Display Accuracy: 0.01A and 0.01V
Ripple Coefficient: ≤1%
Timing Function: Ampere/Time Control, Time Reset
Temperature Control: Heating Indicator, Fault Indicator
Adjustment Buttons: Output Adjustment, Gas Flow Adjustment

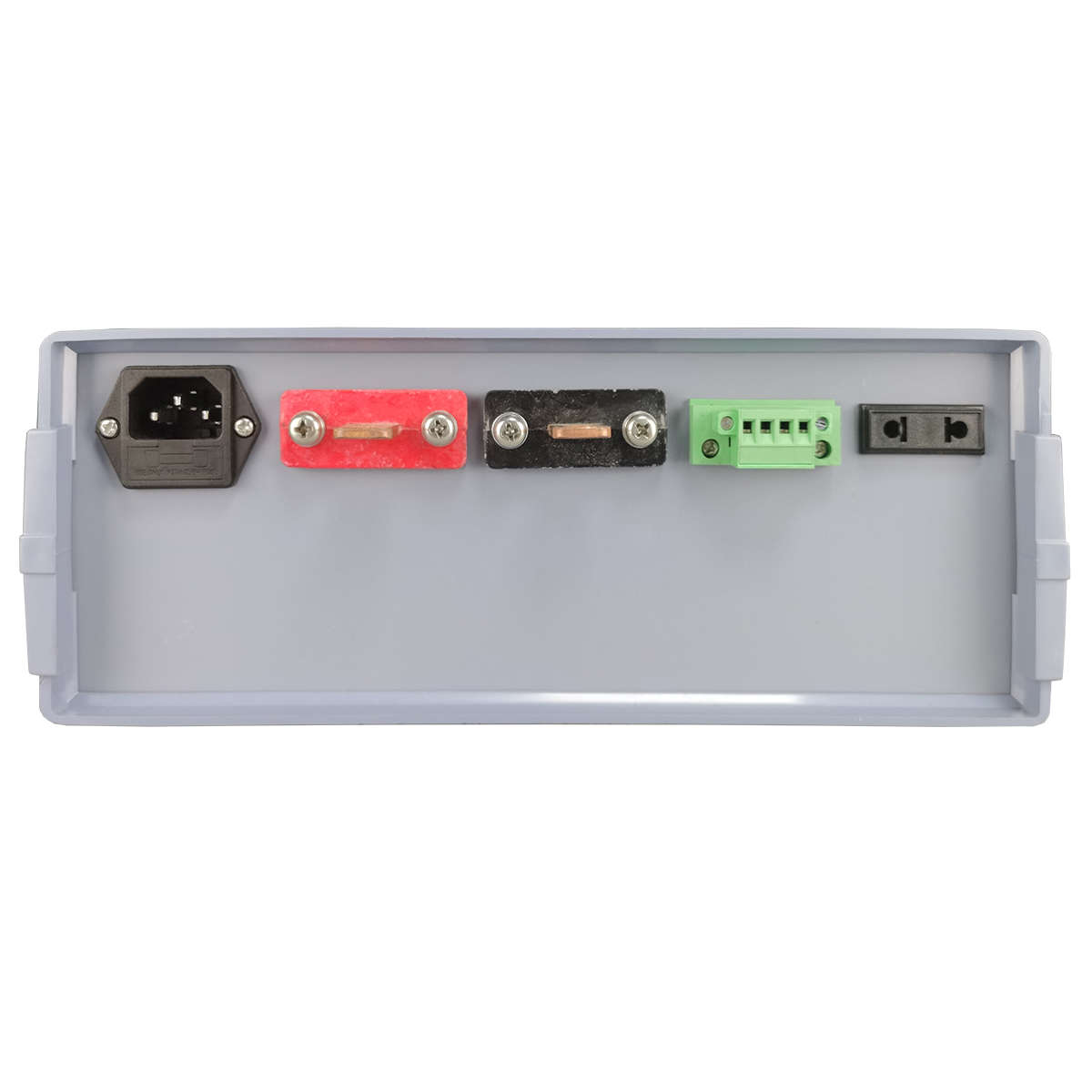

Accessories: Gas Hole, Test Clip

Key Features

Fully Automated: Integrated with a PLC or industrial computer, this system automates the entire process from material loading, electroplating, washing, drying, to sample output. Consequently, there is no need for manual intervention.
High-Precision Control: The system precisely regulates key parameters such as current density, voltage, temperature, pH value, and electroplating time. As a result, the process remains consistent and controlled, ensuring optimal experimental conditions throughout.
Flexibility and Programmability: Multiple electroplating process formulas and programs can be stored and recalled, offering flexibility for various materials and plating types. Therefore, the system easily adapts to diverse experimental needs.
Data Recording and Traceability: The system automatically records complete experimental data, including parameters, curves, and timestamps. This ensures comprehensive traceability, which is critical for meeting quality management standards.
Modular Design: The modular layout of components like the tank, power supply, stirring, heating, and circulation filtration systems makes maintenance, cleaning, and functional expansion more efficient. Thus, users can easily scale and customize the system.

Significant Advantages

Improved Reliability and Repeatability: By eliminating human error, this system ensures objective, accurate experimental data and highly reproducible results. In turn, this provides a solid foundation for scaling up production processes.
Significantly Improved R&D Efficiency: With the ability to support 24/7 operation, the system enables high-throughput, multi-condition parallel experiments. As a result, the R&D cycle is significantly shortened, accelerating the development process.
Safe and Convenient Operation: Equipped with safety protection features and self-diagnostic capabilities, the equipment isolates operators from hazardous chemicals, thereby reducing safety risks and minimizing labor intensity.
Resource and Cost Savings: The system precisely controls the consumption of chemicals, water, and electricity. Consequently, it reduces waste and scrap rates, resulting in significant cost savings for experiments.
